WES AUDIO – ng76 – STEREO PAIR

Descrizione

WESAUDIO NG76 STEREO PAIR: Compressori Matchati FET di nuova generazione con RECALL DIGITALE e AUTOMAZIONE.

I compressori FET sono uno strumento essenziale per lo studio di registrazione, per ragioni talmente solide che i loro circuiti sono rimasti immutati per oltre cinquant’anni. Il suono distintivo e la rinomata affidabilità hanno reso i Comp FET una classica soluzione “no brainer” che vince la prova del tempo.

Se poi consideriamo il FET 76-Style, troviamo un marchio riconoscibile che ha segnato un numero incalcolabile di successi: a questo è dovuta la sua reputazione. Uno strumento affidabile e versatile che non è sostituibile.

WESAUDIO raccoglie questa eredità e ne raffina il Design per maggiore versatilità e TOTALE INTEGRAZIONE con la tua DAW. WESAUDIO ng76 è il compressore FET 76-Style completamente analogico, provvisto però di RECALL DIGITALE e PlugIn.

100% analog FET compressor – ng76 is a 100% analog processing unit with 24dBu of
headroom. Regardless of its full digital control, the analog signal path provides lightning
speed compression sound we all know from countless records.

True stereo operation: 2 x ng76 mono compressors can be linked via dedicated
software. It allows linking compression detectors (with special cables included with
stereo matched pairs) for true stereo compression, or dual mono compression with all
parameters linked.

MIX knob for parallel compression – We all know FET style compression to be lightning
fast, punchy, and aggressive. The mix knob for parallel compression allows us to dial in
the amount of this sonic flavor we want!

THD – total harmonic distortion – Total harmonic distortion button which allows You to dial in additional sonic content in Low or High settings. This design is fully based on the FET circuit and allows us to choose how saturated Your compression becomes.

Carnhill transformers – Transformers in audio compressors aren’t just for electrical isolation – they can add a warm, sonic saturation we all love in our recordings. Carnhill transformers are part of the ng76 adding all that vintage flavor!

Saturation mode – Special mode where static compression is triggered to produce sonics based on FET circuit, and One knob which sets INPUT and OUTPUT in an opposite way. It allows the use of the unit as a saturation box / clipper. The harder the drive will hit the compression and saturation circuit, the more sonic content we will get!

Selectable Input stage – Modern and Vintage modes to support two 1176 revisions (F & G):
a.Vintage – transformer balanced input,
b.Modern – Electronically balanced input

Side Chain EQ sections –
Sophisticated side chain circuit EQ with two independent sections:
a. HPF 60 hz / 90 Hz / 150 Hz – to maintain low end information while compressing,
b. High Shelf of 2kHz / 5kHz, 10kHz – to tame high frequencies by emphasizing
high/hid mids content.

Hardware A/B buttons to compare two independent settings.
a. Even using ng76 as a pure analog signal processor you can easily switch between two parallel settings with the magic of a simple button.

USB or Ethernet Connectivity

Gain reduction, input and output metering – ng76 is armed with classic Vintage Gain
Reduction meter we all recognize and know. To provide a high level of usability, it also
visualizes very precise input and output levels at the same time!

Analog Automation – Just draw automation lines in your DAW and your analog device will follow! And remember, you can use five touch sensitive encoders to record automation TO your DAW!

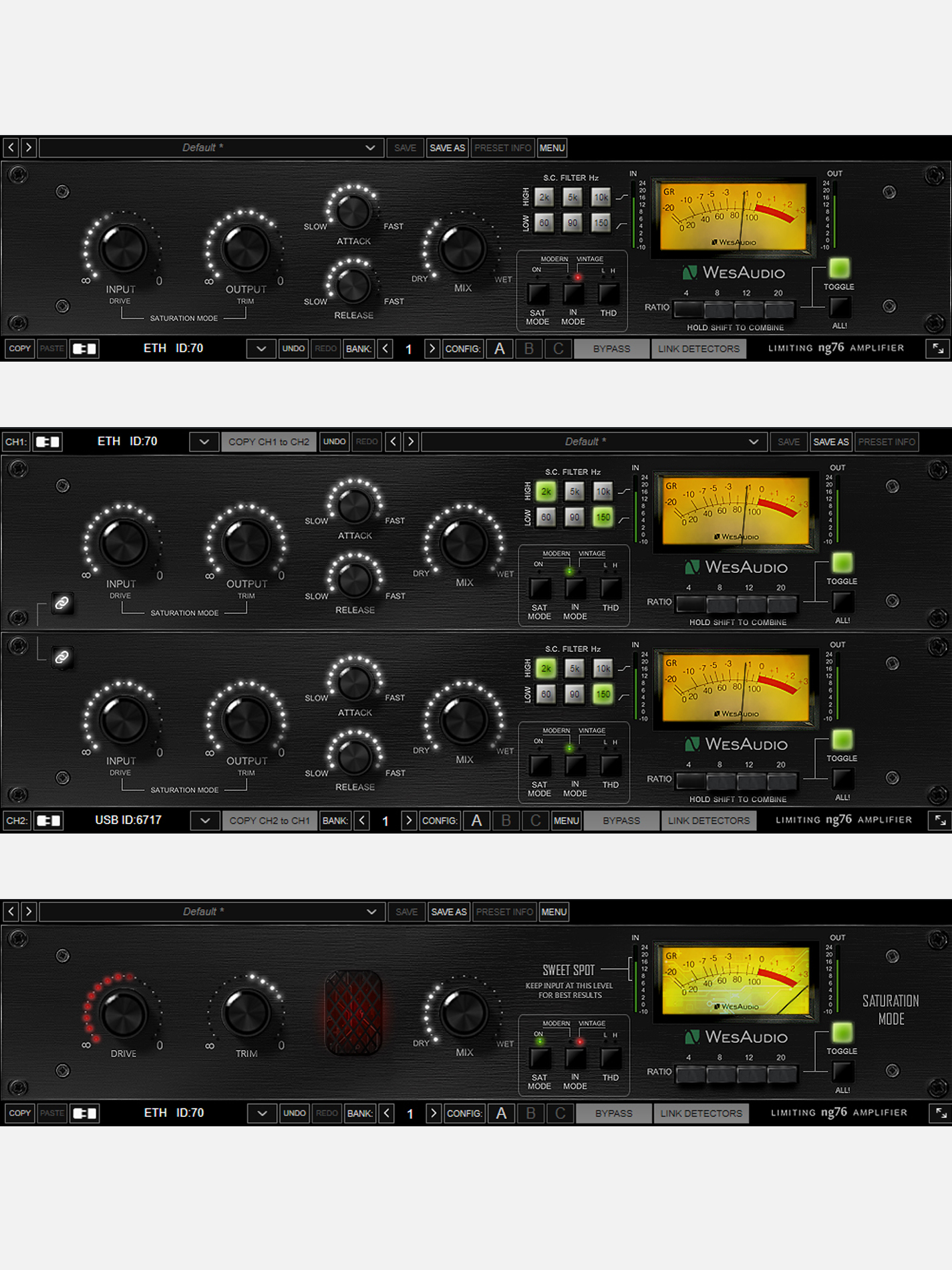

TOTAL Recall and plug-in control.

WES AUDIO NG76 STEREO PAIR:

* Includes 2 separate mono-channel devices that can be linked together through dedicated software.
* Compression detectors can be linked for true stereo compression using dedicated cable (included).
* All parameters between units are linked via a dedicated plug-in.
* 100% analog 2 FET compressors with 24dBu of headroom.
* Classic lightning speed compression style based on WesAudio Beta76 design.
* Full Total Recall and plugin control compatible with most DAWs.
* Classic controls known from FET style compressor – INPUT / OUTPUT / ATTACK / RELEASE. * Additional MIX knob for parallel compression.
* Carnhill Transformers (input and output).
* Saturation mode – Special mode where static compression is triggered to produce sonics based on FET circuit, and One knob which sets INPUT and OUTPUT in an opposite way. It allows to use the unit as a saturation box / clipper.
* Four ratio settings 4:1 / 8:1 / 12:1 / 20:1 – all possible combinations including ALL button mode! * Modern and Vintage modes to support two 1176 revisions (F & G):
– Vintage – transformer balanced input,
– Modern – Electronically balanced input.
* Sophisticated side chain circuit EQ with two independent sections:
– HPF 60 Hz / 90 Hz / 150 Hz – to maintain low end information while compressing,
– High Shelf of 2kHz / 5kHz, 10kHz – to tame high frequencies by emphasizing high/high mid-range content.
* Vintage gain reduction meter.
* Very precise INPUT and OUTPUT metering.
* Hardware A/B buttons to compare two independent settings.
* THD – total harmonic distortion with LOW and HIGH settings based on the FET circuit. * Fully digitally controlled and isolated analog circuit.
* ANALOG AUTOMATION in DAW.
* Ethernet and USB connectivity for integration with digital plug-in.
* Size: 2U.
